A3 A4 Paper Cutting Machine copy paper roll sheeting machine

FOB Reference Price:Get Latest Price
$13,000.00 - $70,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Report Suspicious Activity
Quick Details
paper making machine
8500kg, 8500kg
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Applicable Industries:
Home Use
Place of Origin:
Shandong, China
Brand Name:
380V 50Hz
Product name:
A3 A4 Paper Cutting Machine copy paper roll sheeting machine
Max.width of cutting:
Max diameter of material:
Min.width of cutting:
Length of cutting:
Total Power:
Supply Ability
Supply Ability:
2 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case/wooden pallet
Product Description

Product Application

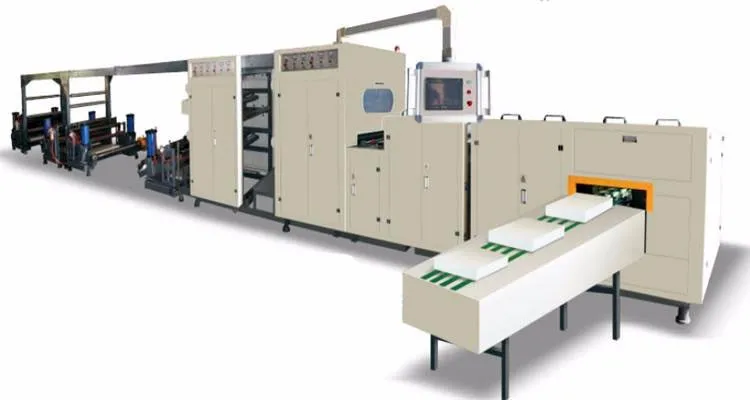

A3 A4 Paper Cutting Machine copy paper roll sheeting machine is suitable for a lot of paper, film, paper&film laminated etc  and is best for  jumbo roll Cutting&Packaging machine. It is top quality Cutting & Packaging machine in china.

Technical parameter of A3 A4 Paper Cutting Machine copy paper roll sheeting machine
HQJ-1100 * Four unwinding roll
Max.Diameter of Unwinding
Max. Cutting Width
Cutting Length
Machinery Speed
10-200cut per minute * Four roll
Working Speed
150 -180cut per minute * Four roll
Cutting Precision
Machine Size(L*W*H)

Main Features

1).Main engine frequency adjust speed,PLC touch screen control system,auto counter quantity, auto fixed length, auto machine stop when had alarm , auto tension control , color code track etc function.

2).Feeding roll use auto loading system(150#cylinder), air shaft use 3#(76mm paper tube core)
3).Machine rack use 10mm thick cast iron steel plate with steel structure. Bottom of cutting knife use heavy casting structure, Guide rollers using static balanced aluminum alloy guide roller.
4).Traction drive fixed position use servo motor system, traction driver roller use steel structure. Feeding traction way is through motor move the chain wheel to drag the rubber roller. The receiving platform is normal automatic finished materials table, control by motor.
5).Our Machine is best jumbo roll cross cutting machine, it have high precision. High speed and receiving sheet paper flat
Detailed Images

Unwinding Unit:

1).Materials: Machinery rock use steel plate and casting steel structure.

2).Control way:through PLC control way(Panasonic, Japan)
3).Unwinding shaft use air shaft type
4).Unwinding use photocell control edge position control system(EPC)
5).Adopt advanced magnetic-powder brake and hydraulic system,guarantee the paper move stablely,avoiding paper wrinkle or break.
Traction device

1)Strcuture style:active traction and passive press fasten style

2)Based seat is casting structure
3)Traction roller is rubber roller(2unit φ85×1150mm)
4)Press fasten style: controlled by pneumatic
5)Transmission guide roller: aluminum guide roller
6)Traction motor adopts servo motor ,Drive in-phase fix the length
7)Float roller up and down tension use pneumatic traction way

Slitting unit

1)Slitting way: Bottom blade initiative, drive upper balde to slit.
2) Slitting precision : ±0.2mm
3)Adopts round cutters,make sure accurate cut,flat cut,higher precision and high efficien

Crosscutting unit

1)Cutting way: bottom cutter fixed, Top cutter make cutting
2)Bottom cutter use heavy casting structure
3)Drive use synchronous wheel drive structure

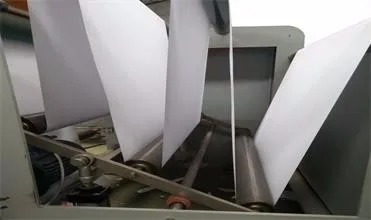

Material conveying and collecting unit:

1).Drive by synchronous belt and synchronous wheel transmission mechanism.
2).Fixed length control by servo motor

3)back plate by automatic pneumatic control
4)frequency conversion motor

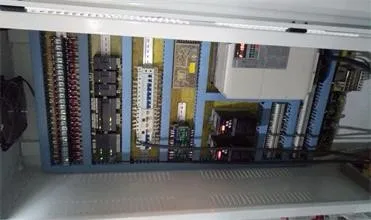

Electrical control unit:

1.machine control by PLC project control system( PLC use Japan,touch screen use Taiwan
2.Use delixi brand electric components and France Schneider switch

Our Service

Pre-Sales Service

* We have professional team and could recommend customers suitable machine according to clients requirements and supply professional technical consultation services.

*  Our engineers could provide the most suitable scheme and equipment for our clients.
*  Complete sets machine will be pre- installed and tested to confirm that the machine are in good condition before delivery.
*  Guarantee Best quality and In time delivery.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* One year quality varranty time after the machine run well.
* We Supply you spare parts at cost price for a long time.

Our Company

Our Company

Qingdao International Trade CO., LTD, which is located in Free Trade Area, Huangdao, Shandong, specializes in developing and producing various machinery. We have professional team and mature production experience for more than 20 years. Taking high technology as guide, the improvement of management level and employee quality as center, the expansion of the production scale and the upgrade of the products as aim, our company will strictly focus on the product quality and put every series of products on the international market with outstanding performance and preeminent quality. Our company persist in the slogan “Customer’s satisfaction is our standing pursuit”.

Factory workshop

Our factory is a highly professional and experienced manufacturer of Paper Machine in China. We manufacture and supply a wide range to customers across the world and enjoys a good reputation both home and abroad.

Our products mainly include:
paper making machine
Paper cutting machine
Paper Tube Machine
Paper Core Cutting Machine
Slitting rewinding Machine

Packing & Delivery

We have many years experiences in machine export.

According the weight of our machine,we desgin defferent package to  insure the  transportation safety.
We choose famous and  well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well.
